Zimmer gripers

Showing all 9 results

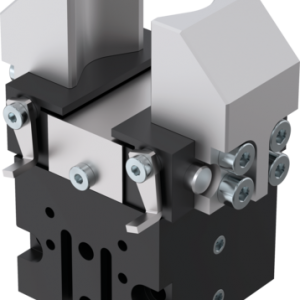

  • 2-Jaw Parallel Grippers Series GP4002-Jaw Parallel Grippers Series GP400



    Serie
    1 Robust, lightweight housing

    Hard-coated aluminum alloy

    2 Mounting and positioning

    mounting possible from several sides for versatile positioning

    3 Energy supply

    possible from several sides

    4 Gripper jaw

    individual gripper finger mounting

    5 Sensing slot

    mounting and positioning of magnetic field sensors

    6 Wedge hook mechanism

    synchronized the movement of the gripper jaws

    7 Integrated gripping force safety device

    spring integrated into cylinder as energy storage

    8 Position sensing

    permanent magnet for direct monitoring of piston movement

    9 Mounting block

    mounting for inductive proximity switch (10)

  • 2-Jaw Parallel Grippers Series GPP10002-Jaw Parallel Grippers Series GPP1000

    2-Jaw Parallel Grippers
    Series GPP1000

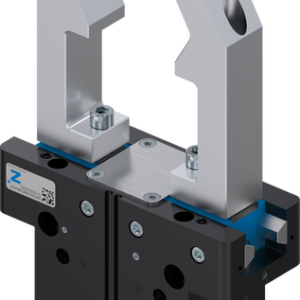

  • 2-Jaw Parallel Grippers Series GPP50002-Jaw Parallel Grippers Series GPP5000



    Serie
    1 Wedge hook mechanism

    Supports to absorb high forces and moments

    Synchronized gripper jaw movement

    2 Gripper jaw

    Gripper fingers mounted using removable centering sleeves

    Lubricated for life via incorporated lubrication slots

    3 Steel Linear Guide

    Steel in steel guide

    Enables use of extremely long gripper fingers

    4 Mounting block

    mounting for inductive proximity switch

    5 Integrated gripping force safety device

    Spring built into cylinder chamber as an energy store

    6 Drive

    Double-acting pneumatic rotor cylinder

    7 Mounting and positioning

    Alternatively, on several sides for customized mounting

    Pneumatic and electrical versions identical apart from height

    8 Sensing slot

    mounting and positioning of magnetic field sensors

    9 Dual lip seal

    IP64 and up to IP67 (with purged air) for Protector version

    Prevents grease from being squeezed out, increasing service life

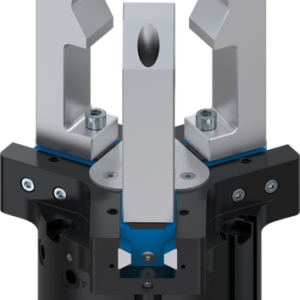

  • 3-Jaw Concentric Grippers Series GPD50003-Jaw Concentric Grippers Series GPD5000



    Serie
    1 Wedge hook mechanism

    high forces and moments capacity

    Synchronized gripper jaw movement

    2 Gripper jaw

    Gripper fingers mounted using removable centering sleeves

    Lubricated for life via incorporated lubrication slots

    3 Mounting block

    mounting for inductive proximity switch

    4 Integrated gripping force safety device

    Spring built into cylinder chamber as an energy store

    5 Sensing slot

    mounting and positioning of magnetic field sensors

    6 Mounting and positioning

    Alternatively, on several sides for customized mounting

    Pneumatic and electrical versions identical apart from height

    7 Drive

    Double-acting pneumatic rotor cylinder

    8 Steel Linear Guide

    Steel in steel guide

    Enables use of extremely long gripper fingers

    9 Dual lip seal

    IP64 and up to IP67 (with purged air) for Protector version

    Prevents grease from being squeezed out, increasing service life

  • CLAMPING ELEMENT SERIES MBPSCLAMPING ELEMENT SERIES MBPS
  • CLAMPING ELEMENT SERIES MKSCLAMPING ELEMENT SERIES MKS
  • GDP400 seriesGDP400 series

    D

    Serie
    1 Removable centering sleeves
    quick and economical positioning of the gripper fingers
    2 Wedge hook mechanism
    synchronized the movement of the gripper jaws
    3 Precise T-Slot guide
    high forces and moments capacity
    4 Endposition 0/90/180° adjustment
    endstops for 0°/90°/180° included with purchase
    5 Rotating-drive mechanism
    robust, wear-resistant
    6 Drive
    two double-acting pneumatic cylinders
    7 Slot for magnetic field sensorsensing of the rotational position and gripper jaw position
    8 Integrated gripping force safety device
    optional via integrated spring (C or O models)

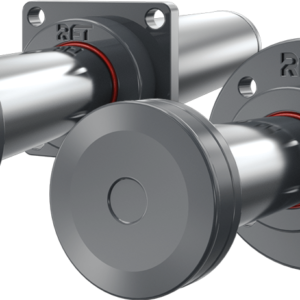

  • HYDRAULIC BUFFER TYPE PUDZ III CARTRIDGEHYDRAULIC BUFFER TYPE PUDZ III CARTRIDGE

    Particularly suitable in application for pilling and drilling rigs as well as for mechanical engineering and plant constructions.

    MADE IN GERMANY, own production.

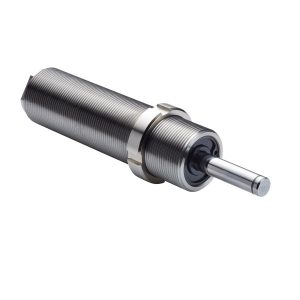

  • Pow­er­Stop in­dus­trial shock ab­sorberPow­er­Stop in­dus­trial shock ab­sorber
