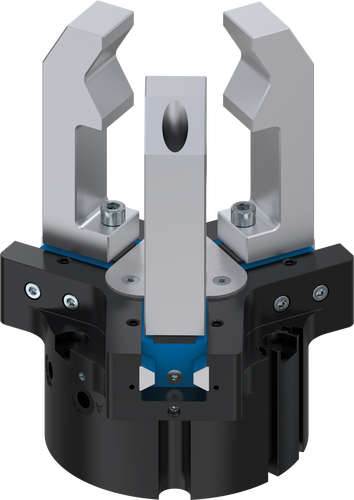

3-Jaw Concentric Grippers Series GPD5000

BENEFITS IN DETAIL

1 Wedge hook mechanism

high forces and moments capacity

Synchronized gripper jaw movement

2 Gripper jaw

Gripper fingers mounted using removable centering sleeves

Lubricated for life via incorporated lubrication slots

3 Mounting block

mounting for inductive proximity switch

4 Integrated gripping force safety device

Spring built into cylinder chamber as an energy store

5 Sensing slot

mounting and positioning of magnetic field sensors

6 Mounting and positioning

Alternatively, on several sides for customized mounting

Pneumatic and electrical versions identical apart from height

7 Drive

Double-acting pneumatic rotor cylinder

8 Steel Linear Guide

Steel in steel guide

Enables use of extremely long gripper fingers

9 Dual lip seal

IP64 and up to IP67 (with purged air) for Protector version

Prevents grease from being squeezed out, increasing service life

Add to Wishlist

SKU: 4009 Category: Pneumatic grippers

Description

Description

Specifications

3-Jaw Concentric Grippers
Series GPD5000

“The Universal One”

Up to 30% more gripping force than the benchmark

10% more static forces and moments than the benchmark

Gripper fingers up to 10% longer than the benchmark

Gripper fingers weight up to 15% higher than the benchmark

Sealed guide IP64 / Protector version IP67 (with purged air)

Protected against corrosion

Up to 30 million cycles without maintenance

Order-No.	Stroke per jaw	Gripping force in opening	Gripping force in closing
Installation Size: GPD5003
GPD5003N-00-A	2.5 [mm]	335 [N]	310 [N]
GPD5003N-20-A	2.5 [mm]	335 [N]	310 [N]
GPD5003N-21-A	2.5 [mm]	335 [N]	310 [N]
GPD5003N-24-A	2.5 [mm]	335 [N]	310 [N]
GPD5003NC-00-A	2.5 [mm]	–	440 [N]
GPD5003NC-20-A	2.5 [mm]	–	440 [N]
GPD5003NC-21-A	2.5 [mm]	–	440 [N]
GPD5003NC-24-A	2.5 [mm]	–	440 [N]
GPD5003NO-00-A	2.5 [mm]	465 [N]	–
GPD5003NO-20-A	2.5 [mm]	465 [N]	–
GPD5003NO-21-A	2.5 [mm]	465 [N]	–
GPD5003NO-24-A	2.5 [mm]	465 [N]	–
Installation Size: GPD5004
Order-No.	Stroke per jaw	Gripping force in opening	Gripping force in closing
GPD5004N-00-A	4 [mm]	500 [N]	460 [N]
GPD5004N-20-A	4 [mm]	500 [N]	460 [N]
GPD5004N-21-A	4 [mm]	500 [N]	460 [N]
GPD5004N-24-A	4 [mm]	500 [N]	460 [N]
GPD5004NC-00-A	4 [mm]	–	650 [N]
GPD5004NC-20-A	4 [mm]	–	650 [N]
GPD5004NC-21-A	4 [mm]	–	650 [N]
GPD5004NC-24-A	4 [mm]	–	650 [N]
GPD5004NO-00-A	4 [mm]	690 [N]	–
GPD5004NO-20-A	4 [mm]	690 [N]	–
GPD5004NO-21-A	4 [mm]	690 [N]	–
GPD5004NO-24-A	4 [mm]	690 [N]	–
GPD5004S-00-A	2 [mm]	1100 [N]	1010 [N]
GPD5004S-20-A	2 [mm]	1100 [N]	1010 [N]
GPD5004S-21-A	2 [mm]	1100 [N]	1010 [N]
GPD5004S-24-A	2 [mm]	1100 [N]	1010 [N]
GPD5004SC-00-A	2 [mm]	–	1430 [N]
GPD5004SC-20-A	2 [mm]	–	1430 [N]
GPD5004SC-21-A	2 [mm]	–	1430 [N]
GPD5004SC-24-A	2 [mm]	–	1430 [N]
GPD5004SO-00-A	2 [mm]	1520 [N]	–
GPD5004SO-20-A	2 [mm]	1520 [N]	–
GPD5004SO-21-A	2 [mm]	1520 [N]	–
GPD5004SO-24-A	2 [mm]	1520 [N]	–
Installation Size: GPD5006
Order-No.	Stroke per jaw	Gripping force in opening	Gripping force in closing
GPD5006N-00-A	6 [mm]	800 [N]	740 [N]
GPD5006N-20-A	6 [mm]	800 [N]	740 [N]
GPD5006N-21-A	6 [mm]	800 [N]	740 [N]
GPD5006N-24-A	6 [mm]	800 [N]	740 [N]
GPD5006NC-00-A	6 [mm]	–	1020 [N]
GPD5006NC-20-A	6 [mm]	–	1020 [N]
GPD5006NC-21-A	6 [mm]	–	1020 [N]
GPD5006NC-24-A	6 [mm]	–	1020 [N]
GPD5006NO-00-A	6 [mm]	1080 [N]	–
GPD5006NO-20-A	6 [mm]	1080 [N]	–
GPD5006NO-21-A	6 [mm]	1080 [N]	–
GPD5006NO-24-A	6 [mm]	1080 [N]	–
GPD5006S-00-A	3 [mm]	1750 [N]	1620 [N]
GPD5006S-20-A	3 [mm]	1750 [N]	1620 [N]
GPD5006S-21-A	3 [mm]	1750 [N]	1620 [N]
GPD5006S-24-A	3 [mm]	1750 [N]	1620 [N]
GPD5006SC-00-A	3 [mm]	–	2240 [N]
GPD5006SC-20-A	3 [mm]	–	2240 [N]
GPD5006SC-21-A	3 [mm]	–	2240 [N]
GPD5006SC-24-A	3 [mm]	–	2240 [N]
GPD5006SO-00-A	3 [mm]	2370 [N]	–
GPD5006SO-20-A	3 [mm]	2370 [N]	–
GPD5006SO-21-A	3 [mm]	2370 [N]	–
GPD5006SO-24-A	3 [mm]	2370 [N]	–
Installation Size: GPD5008
Order-No.	Stroke per jaw	Gripping force in opening	Gripping force in closing
GPD5008N-00-A	8 [mm]	1340 [N]	1260 [N]
GPD5008N-20-A	8 [mm]	1340 [N]	1260 [N]
GPD5008N-21-A	8 [mm]	1340 [N]	1260 [N]
GPD5008N-24-A	8 [mm]	1340 [N]	1260 [N]
GPD5008NC-00-A	8 [mm]	–	1690 [N]
GPD5008NC-20-A	8 [mm]	–	1690 [N]
GPD5008NC-21-A	8 [mm]	–	1690 [N]
GPD5008NC-24-A	8 [mm]	–	1690 [N]
GPD5008NO-00-A	8 [mm]	1770 [N]	–
GPD5008NO-20-A	8 [mm]	1770 [N]	–
GPD5008NO-21-A	8 [mm]	1770 [N]	–
GPD5008NO-24-A	8 [mm]	1770 [N]	–
GPD5008S-00-A	4 [mm]	2960 [N]	2780 [N]
GPD5008S-20-A	4 [mm]	2960 [N]	2780 [N]
GPD5008S-21-A	4 [mm]	2960 [N]	2780 [N]
GPD5008S-24-A	4 [mm]	2960 [N]	2780 [N]
GPD5008SC-00-A	4 [mm]	–	3730 [N]
GPD5008SC-20-A	4 [mm]	–	3730 [N]
GPD5008SC-21-A	4 [mm]	–	3730 [N]
GPD5008SC-24-A	4 [mm]	–	3730 [N]
GPD5008SO-00-A	4 [mm]	3910 [N]	–
GPD5008SO-20-A	4 [mm]	3910 [N]	–
GPD5008SO-21-A	4 [mm]	3910 [N]	–
GPD5008SO-24-A	4 [mm]	3910 [N]
