Description

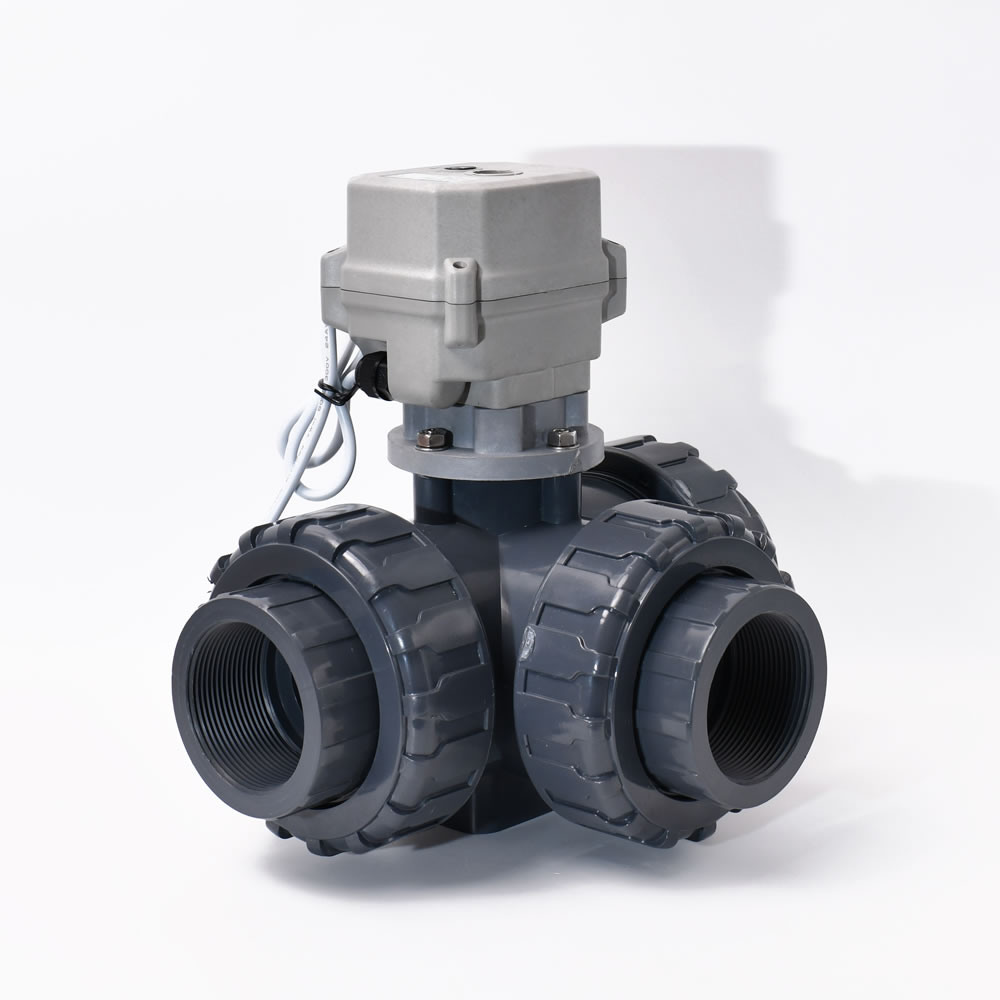

A150-T50-P3-B CE ROHS DN50 2 inch electric motorized 3 way PVC UPVC ball valve
Technical Parameters:
| Valve size | NPT/BSP/no thread socket type 1/2″ to 2″ |
| Maximum working pressure | 1.5 MPa |
| Circulation medium | Fluid, air |
| Rated voltage | DC12-24, AC110-230v |
| Wiring control methods | CR201 CR2-02 CR5-02 |
| Working current | ≤1.5A |
| Open/close time | ≤10S |
| Life time | 50000 times |
| Valve Body material | PVC,UPVC,CPVC,PPH（Optional） |
| Actuator material | Engineering Plastics |
| Sealing material | EPDM & PTFE |
| Actuator rotation | 90° |
| Max. torque force | 10Nm（Optional） |
| Cable Length | 0.5m,1.5m（Optional） |
| Environment temperature | -15℃～50℃ |
| Liquid temperature | 2℃～55℃ |
| Manual override | Yes |
| Indicator | Yes |
| Protection class | IP67 |
| Flow direction | L port, T port |
