2-JAW PARALLEL GRIPPERS SERIES GP400

Datasheet GP403N-C_

Add to Wishlist
Category:

Description

2-JAW PARALLEL GRIPPERS
SERIES GP400



INSTALLATION SIZE: GP403
Order-No. Stroke per jaw Gripping force in closing Gripping force in opening
GP403N-C 3 [mm] 85 [N] 100 [N]
GP403NC-C 3 [mm] 115 [N]
GP403NO-C 3 [mm] 115 [N]
INSTALLATION SIZE: GP404
Order-No. Stroke per jaw Gripping force in closing Gripping force in opening
GP404N-C 4 [mm] 170 [N] 185 [N]
GP404NC-C 4 [mm] 210 [N]
GP404NO-C 4 [mm] 225 [N]
GP404S-C 2 [mm] 375 [N] 410 [N]
GP404SC-C 2 [mm] 465 [N]
GP404SO-C 2 [mm] 500 [N]
INSTALLATION SIZE: GP406
Order-No. Stroke per jaw Gripping force in closing Gripping force in opening
GP406N-C 6 [mm] 300 [N] 325 [N]
GP406NC-C 6 [mm] 400 [N]
GP406NO-C 6 [mm] 425 [N]
GP406S-C 3 [mm] 670 [N] 725 [N]
GP406SC-C 3 [mm] 900 [N]
GP406SO-C 3 [mm] 950 [N]
INSTALLATION SIZE: GP408
Order-No. Stroke per jaw Gripping force in closing Gripping force in opening
GP408N-C 8 [mm] 550 [N] 590 [N]
GP408NC-C 8 [mm] 700 [N]
GP408NO-C 8 [mm] 740 [N]
GP408S-C 4 [mm] 1230 [N] 1320 [N]
GP408SC-C 4 [mm] 1570 [N]
GP408SO-C 4 [mm] 1660 [N]
INSTALLATION SIZE: GP410
Order-No. Stroke per jaw Gripping force in closing Gripping force in opening
GP410N-C 10 [mm] 740 [N] 795 [N]
GP410NC-C 10 [mm] 990 [N]
GP410NO-C 10 [mm] 1050 [N]
GP410S-C 5 [mm] 1650 [N] 1770 [N]
GP410SC-C 5 [mm] 2215 [N]
GP410SO-C 5 [mm] 2340 [N]
INSTALLATION SIZE: GP412
Order-No. Stroke per jaw Gripping force in closing Gripping force in opening
GP412N-C 12 [mm] 1290 [N] 1370 [N]
GP412NC-C 12 [mm] 1780 [N]
GP412NO-C 12 [mm] 1850 [N]
GP412S-C 6 [mm] 2890 [N] 3050 [N]
GP412SC-C 6 [mm] 3960 [N]
GP412SO-C 6 [mm] 4130 [N]
INSTALLATION SIZE: GP416
Order-No. Stroke per jaw Gripping force in closing Gripping force in opening
GP416N-C 16 [mm] 1860 [N] 1960 [N]
GP416NC-C 16 [mm] 2490 [N]
GP416NO-C 16 [mm] 2590 [N]
GP416S-C 8 [mm] 4160 [N] 4390 [N]
GP416SC-C 8 [mm] 5560 [N]
GP416SO-C 8 [mm] 5780 [N]
INSTALLATION SIZE: GP420
Order-No. Stroke per jaw Gripping force in closing Gripping force in opening
GP420N-C 20 [mm] 3175 [N] 3330 [N]
GP420NC-C 20 [mm] 4060 [N]
GP420NO-C 20 [mm] 4215 [N]
GP420S-C 10 [mm] 7080 [N] 7430 [N]
GP420SC-C 10 [mm] 9060 [N]
GP420SO-C 10 [mm] 9400 [N]
INSTALLATION SIZE: GP430
Order-No. Stroke per jaw Gripping force in closing Gripping force in opening
GP430N-C 30 [mm] 6675 [N] 6830 [N]
GP430NC-C 30 [mm] 8480 [N]
GP430NO-C 30 [mm] 8640 [N]
GP430S-C 15 [mm] 14900 [N] 15250 [N]
GP430SC-C 15 [mm] 18930 [N]
GP430SO-C 15 [mm] 19275 [N]

Related products

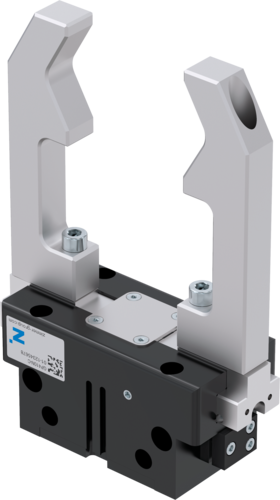

2-Jaw Parallel Grippers Series GP400



Serie
1 Robust, lightweight housing

Hard-coated aluminum alloy

2 Mounting and positioning

mounting possible from several sides for versatile positioning

3 Energy supply

possible from several sides

4 Gripper jaw

individual gripper finger mounting

5 Sensing slot

mounting and positioning of magnetic field sensors

6 Wedge hook mechanism

synchronized the movement of the gripper jaws

7 Integrated gripping force safety device

spring integrated into cylinder as energy storage

8 Position sensing

permanent magnet for direct monitoring of piston movement

9 Mounting block

mounting for inductive proximity switch (10)

Add to Wishlist
SKU: 4005 Category:

Description

Specifications

DOWNLOAD SPECS

2-Jaw Parallel Grippers
Series GP400

Serie

“The economical”

Concentration on the essentials

The most economic type of gripping: This is how you reduce your production costs

Proven T slot guide

This established and proven guiding technology stands for the highest process reliability like no other

Compact structure

Reduces the interference contours for your application

Installation Size: GP403
Order-No. Stroke per jaw Gripping force in opening Gripping force in closing
GP403N-C 3 [mm] 100 [N] 85 [N]
GP403NC-C 3 [mm] – 115 [N]
GP403NO-C 3 [mm] 115 [N] –
Installation Size: GP404
Order-No. Stroke per jaw Gripping force in opening Gripping force in closing
GP404N-C 4 [mm] 185 [N] 170 [N]
GP404NC-C 4 [mm] – 210 [N]
GP404NO-C 4 [mm] 225 [N] –
GP404S-C 2 [mm] 410 [N] 375 [N]
GP404SC-C 2 [mm] – 465 [N]
GP404SO-C 2 [mm] 500 [N] –
Installation Size: GP406
Order-No. Stroke per jaw Gripping force in opening Gripping force in closing
GP406N-C 6 [mm] 325 [N] 300 [N]
GP406NC-C 6 [mm] – 400 [N]
GP406NO-C 6 [mm] 425 [N] –
GP406S-C 3 [mm] 725 [N] 670 [N]
GP406SC-C 3 [mm] – 900 [N]
GP406SO-C 3 [mm] 950 [N] –
Installation Size: GP408
Order-No. Stroke per jaw Gripping force in opening Gripping force in closing
GP408N-C 8 [mm] 590 [N] 550 [N]
GP408NC-C 8 [mm] – 700 [N]
GP408NO-C 8 [mm] 740 [N] –
GP408S-C 4 [mm] 1320 [N] 1230 [N]
GP408SC-C 4 [mm] – 1570 [N]
GP408SO-C 4 [mm] 1660 [N] –
Installation Size: GP410
Order-No. Stroke per jaw Gripping force in opening Gripping force in closing
GP410N-C 10 [mm] 795 [N] 740 [N]
GP410NC-C 10 [mm] – 990 [N]
GP410NO-C 10 [mm] 1050 [N] –
GP410S-C 5 [mm] 1770 [N] 1650 [N]
GP410SC-C 5 [mm] – 2215 [N]
GP410SO-C 5 [mm] 2340 [N] –
Installation Size: GP412
Order-No. Stroke per jaw Gripping force in opening Gripping force in closing
GP412N-C 12 [mm] 1370 [N] 1290 [N]
GP412NC-C 12 [mm] – 1780 [N]
GP412NO-C 12 [mm] 1850 [N] –
GP412S-C 6 [mm] 3050 [N] 2890 [N]
GP412SC-C 6 [mm] – 3960 [N]
GP412SO-C 6 [mm] 4130 [N] –
Installation Size: GP416
Order-No. Stroke per jaw Gripping force in opening Gripping force in closing
GP416N-C 16 [mm] 1960 [N] 1860 [N]
GP416NC-C 16 [mm] – 2490 [N]
GP416NO-C 16 [mm] 2590 [N] –
GP416S-C 8 [mm] 4390 [N] 4160 [N]
GP416SC-C 8 [mm] – 5560 [N]
GP416SO-C 8 [mm] 5780 [N] –
Installation Size: GP420
Order-No. Stroke per jaw Gripping force in opening Gripping force in closing
GP420N-C 20 [mm] 3330 [N] 3175 [N]
GP420NC-C 20 [mm] – 4060 [N]
GP420NO-C 20 [mm] 4215 [N] –
GP420S-C 10 [mm] 7430 [N] 7080 [N]
GP420SC-C 10 [mm] – 9060 [N]
GP420SO-C 10 [mm] 9400 [N] –
Installation Size: GP430
Order-No. Stroke per jaw Gripping force in opening Gripping force in closing
GP430N-C 30 [mm] 6830 [N] 6675 [N]
GP430NC-C 30 [mm] – 8480 [N]
GP430NO-C 30 [mm] 8640 [N] –
GP430S-C 15 [mm] 15250 [N] 14900 [N]
GP430SC-C 15 [mm] – 18930 [N]
GP430SO-C 15 [mm] 19275 [N] –
