Description

Flange Sight Glass

Flange Sight Glass, also known as flow indicator, is a device generally installed on industrial pipes, tanks and vessels. Most competing units consist of a piece of glass sandwiched between two metal flanges and two sealing gaskets. It is one of main accessories used on industrial pipeline installations to allow users to observe the flow reaction of liquid, gas, steam and other media in the pipeline to ensure its safe production and prevent accidents from happening.

High corrosion resistance, aesthetic appearance
Effective in most operating environments
Easy to install, use, clean and repair
A longer service life
Special discounts for large orders and multiple promotion campaigns
A picture of flange sight glass on the white background.

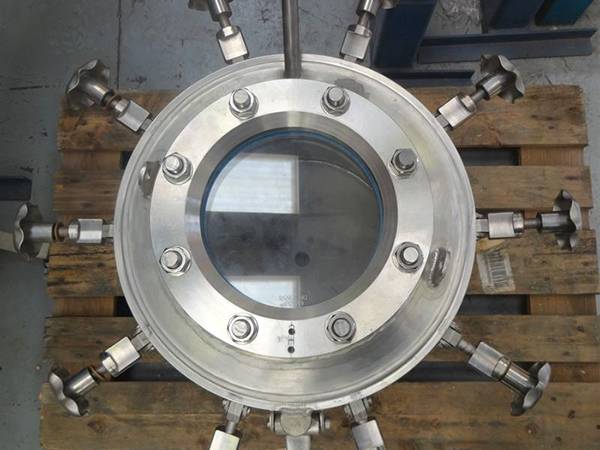

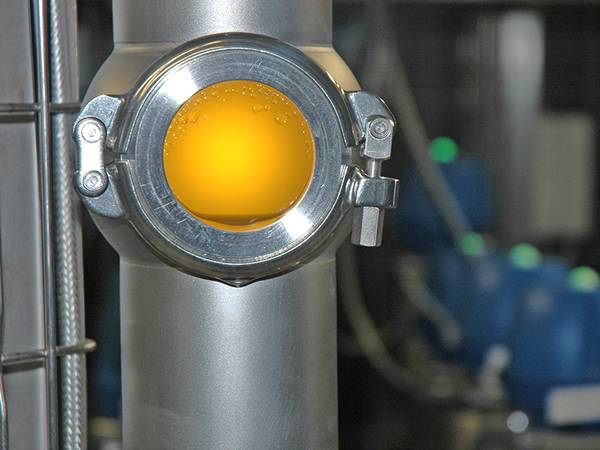

Flange sight glass is generally installed on industrial pipes, tanks and vessels.

Structure & Performance

Parts Materials Max. Pressure or Temperature
Body & Covers 304 Stainless Steel -112 °F to 797 °F
316 Stainless Steel -320.8 °F to 1202 °F
316L Stainless Steel -320.8 °F to 1472 °F
Windows Tempered Soda Lime Glass 72 psig at 212 °F
Tempered Borosilicate Glass 87 psig at 248 °F
Tempered Quartz Glass 87 psig at 392 °F
Sealing Gaskets NBR -4 °F to 248 °F
Viton -13 °F to 400 °F
PTFE (Teflon) -40 °F to 500 °F
Flange Standard ANSI 150Lb/300Lb, DIN, JIS 5K/10K, Ghost, GB
Advantages

Excellent quality. Whole process quality control makes sure no dead zones!
Affordable price. Efficient internal cost control reduces expenses and benefits customers better!
Fast delivery. State-of-the-art production lines and sufficient stocking enables a shorter delivery period.
Professional services. Whole process of services before, during and after sales is available.

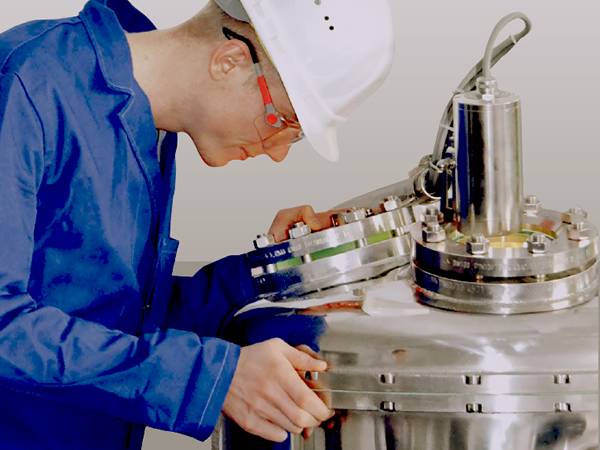

Application
